Kuka C4 Power Cable: Technical Specifications and Industrial Applications

2025-05-22

Introduction to Kuka C4 POWER CABLE

The Kuka C4 Power Cable is a specialized high-performance cable system designed for industrial robotics applications, particularly for KUKA's C4 controller series. Engineered to meet the rigorous demands of automated manufacturing environments, this cable provides reliable power transmission between the Robot Controller and manipulator.

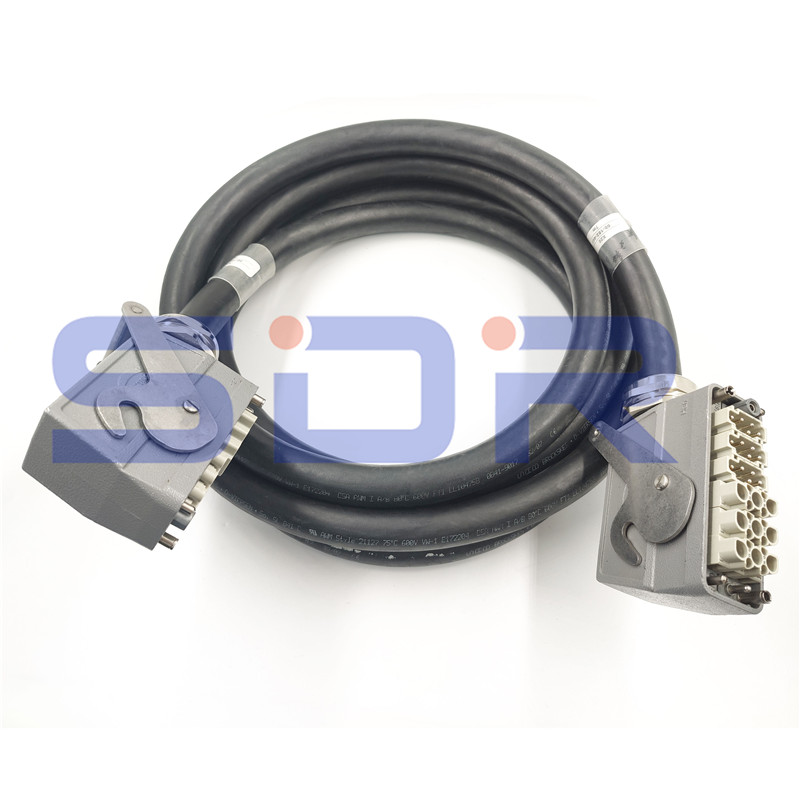

Kuka C4 Power Cable

Technical Characteristics

  • Voltage Rating: 600V AC/DC (1000V peak transient voltage)

  • Current Capacity: Up to 32A continuous load (40A peak)

  • Conductor Material: Oxygen-free copper (OFC) with tinned coating for corrosion resistance

  • Insulation: Triple-layer XLPE (cross-linked polyethylene) with dielectric strength >20kV/mm

  • Temperature Range: -40°C to +105°C continuous operation (+125°C short-term)

  • Bending Radius: Minimum 5x cable diameter for dynamic applications

  • Shielding: 85% coverage braided copper shield with aluminum foil layer (EMI/RFI protection)

  • Jacket Material: PUR (polyurethane) with abrasion resistance >500 cycles (DIN 53516)

  • Flex Life: >5 million cycles at full rated load (ISO 10572-1 test standard)

  • Flame Rating: UL94 V-0 compliant with low smoke/zero halogen (LSZH) properties

Key Features and Performance Advantages

The Kuka C4 Power Cable incorporates several advanced design features that distinguish it from standard industrial cables:

Torsion-Resistant Construction: Special helical core design allows for ±180°/m torsion capability without conductor damage, critical for robotic wrist movements.

Dynamic Stress Optimization: The cable's layered architecture includes:

  • Pre-formed copper strands (0.08mm diameter) for maximum flexibility

  • Anti-twist aramid fiber reinforcement layer (1600N tensile strength)

  • Precision-wound shielding with <1Ω/km transfer impedance


Environmental Protection: The PUR jacket provides:

  • IP67 rating when properly terminated

  • Resistance to oils (ISO 1817: >70% retention after 168h immersion)

  • UV stability (1000h xenon arc testing per ISO 4892-2)


Application Scenarios

The Kuka C4 Power Cable is specifically designed for demanding robotic applications across multiple industries:

Automotive Manufacturing

In spot welding cells where:

  • Cables must withstand >50,000 daily movement cycles

  • High electromagnetic interference from welding transformers (up to 20kA pulses)

  • Exposure to metal spatter and cooling lubricants


Foundry and Metal Processing

For die-casting applications requiring:

  • Continuous operation in ambient temperatures up to 80°C

  • Resistance to molten metal splashes (short-term exposure to 600°C)

  • Compatibility with robotic deburring and grinding operations


Electronics Assembly

In cleanroom environments where:

  • Low particulate emission (<0.1mg/m³ per VDI 2083)

  • ESD protection (surface resistance 10⁴-10⁹Ω per IEC 61340-5-1)

  • Precision movement with minimal cable memory effect


Medical Device Manufacturing

For sterile production lines requiring:

  • Repeated chemical sterilization (compatible with H₂O₂, EtO)

  • FDA-compliant materials (21 CFR 177.2600)

  • Vibration-free power transmission for micro-assembly


Maintenance and Care Procedures

Proper maintenance extends the service life of Kuka C4 power cables significantly:

Installation Best Practices

  • Use strain relief fittings rated for >200N pull-out force

  • Maintain minimum bend radius during routing (75mm for 15mm OD cables)

  • Implement service loops to prevent stress concentration

Operational Monitoring

  • Monthly inspection for:

    • Shield continuity (<100mΩ resistance)

    • Insulation resistance (>100MΩ at 500VDC)

    • Jacket abrasion (maximum 10% wall thickness loss)

  • Thermal imaging during peak loads (alert at >15°C above ambient)

Cleaning Procedures

  • For oil contamination: Use isopropyl alcohol (70-90% concentration)

  • For particulate buildup: Dry nitrogen blow-off at <3 bar pressure

  • Never use abrasive cleaners or high-pressure washers (>20psi)

Storage Recommendations

  • Coil cables with >20x diameter loops on reels

  • Maintain storage temperature between -20°C to +40°C

  • Rotate stock every 6 months to prevent material memory

End-of-Life Indicators

Replace cables when observing:

  • Visible conductor exposure through jacket

  • Increased flexibility (indicates broken strands)

  • Intermittent power delivery (voltage drop >5% under load)

  • Shielding effectiveness loss (>3dB increase in EMI)
