How to Use Fanuc Teach Pendant

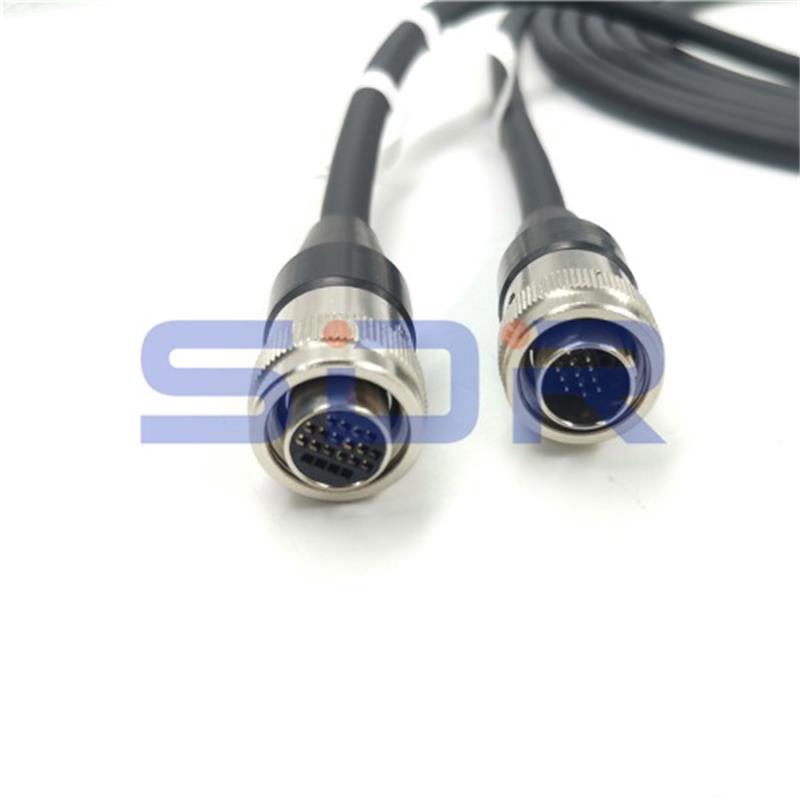

Fanuc Teach Pendant Cables are used to connect the teach pendant to the Robot Controller. The teach pendant is an input device used by the operator to control and program the robot. The cable typically has one end that plugs into the teach pendant and another end that connects to the robot controller. The length of the cable can vary depending on the robot model and the application. It is important to use the correct cable for the specific robot model to ensure proper communication and operation.

To use a Fanuc teach pendant, follow these steps:

1. Switch on the system - ensure the power is connected and switched on.

2. Connect the Teach Pendant Cable onto the robot controller.

3. Connect the other end of the Teach Pendant Cable to the teach pendant itself.

4. Power on the teach pendant - usually by pressing the "On" button.

5. Select the mode - The teach pendant will prompt you to select the appropriate mode. You can choose between manual, automatic, or teach mode.

6. Use the teach pendant buttons and joystick to control the robot. The teach pendant functions as an input device allowing the operator to move the robot arm, input commands, and monitor the system.

7. When in teach mode, you can teach the robot various positions by manually moving the robot arm while the teach pendant records its movements.

8. Once you have finished programming the robot, save the program and exit the teach mode.

It is important to refer to the specific instructions provided by Fanuc in the user manual or through training to ensure safe and accurate operation of the system.
